# MeshCore Open Open-source Flutter client for MeshCore LoRa mesh networking devices. ## Overview MeshCore Open is a cross-platform mobile application for communicating with MeshCore LoRa mesh network devices via Bluetooth Low Energy (BLE). The app enables long-range, off-grid communication through peer-to-peer messaging, public channels, and mesh networking capabilities. Get it on Obtainium ## Screenshots

Contacts

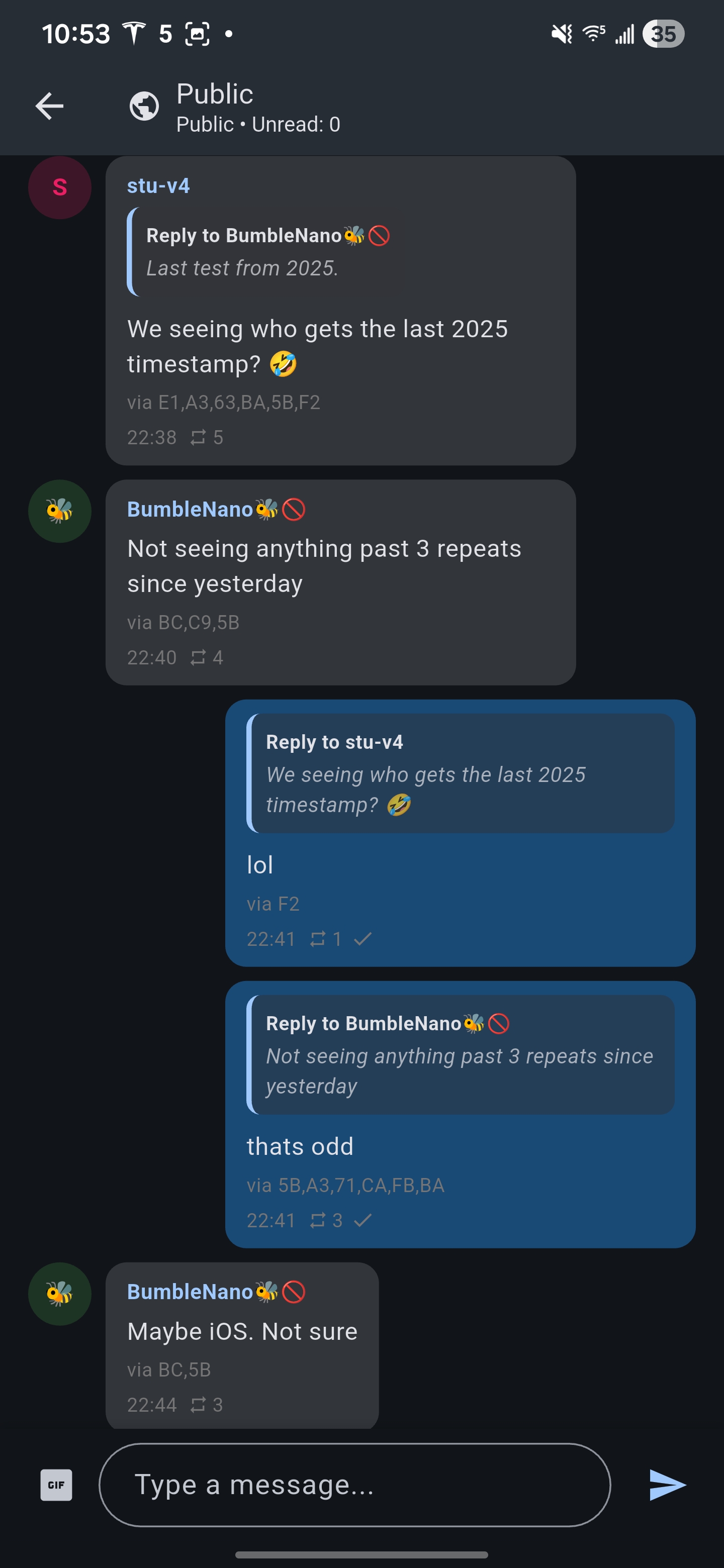

Chat

Reactions

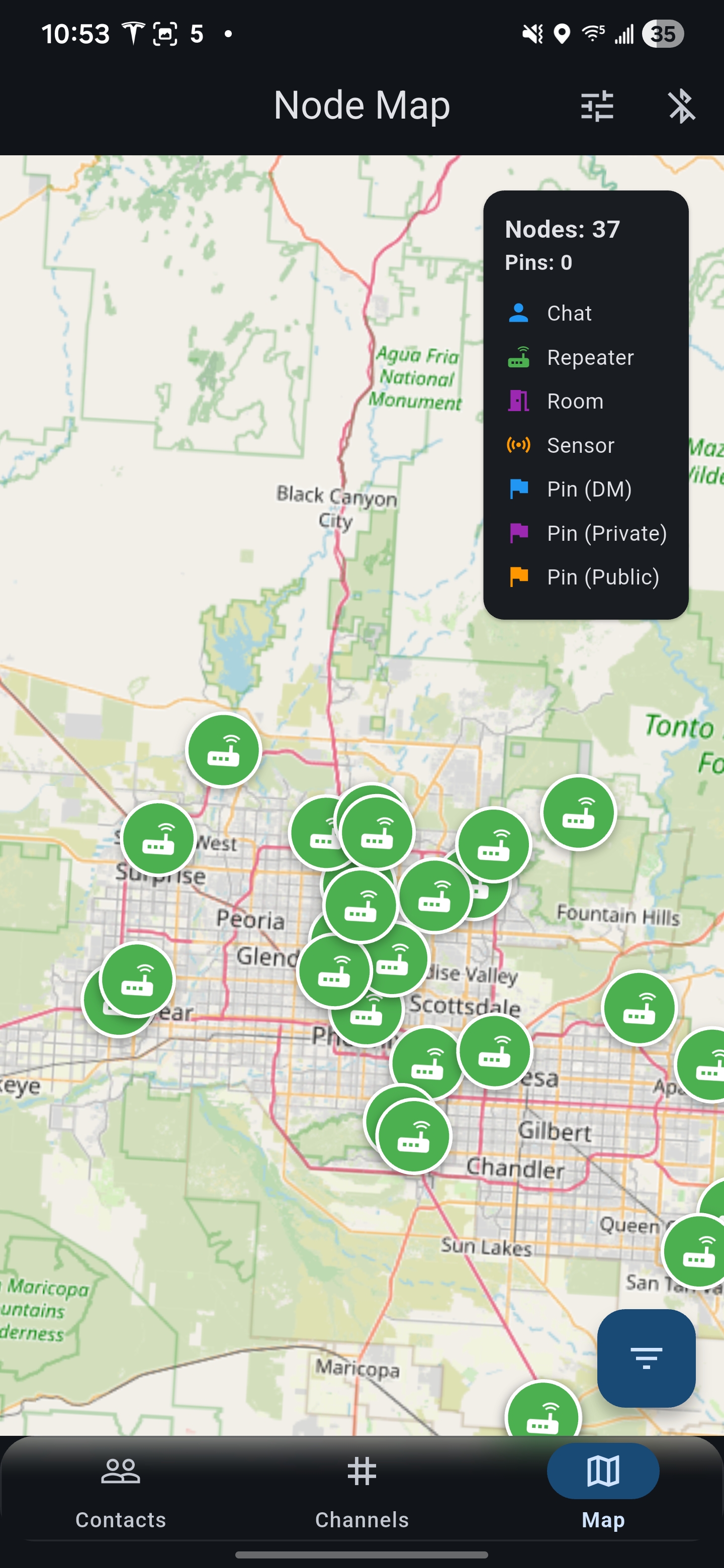

Map

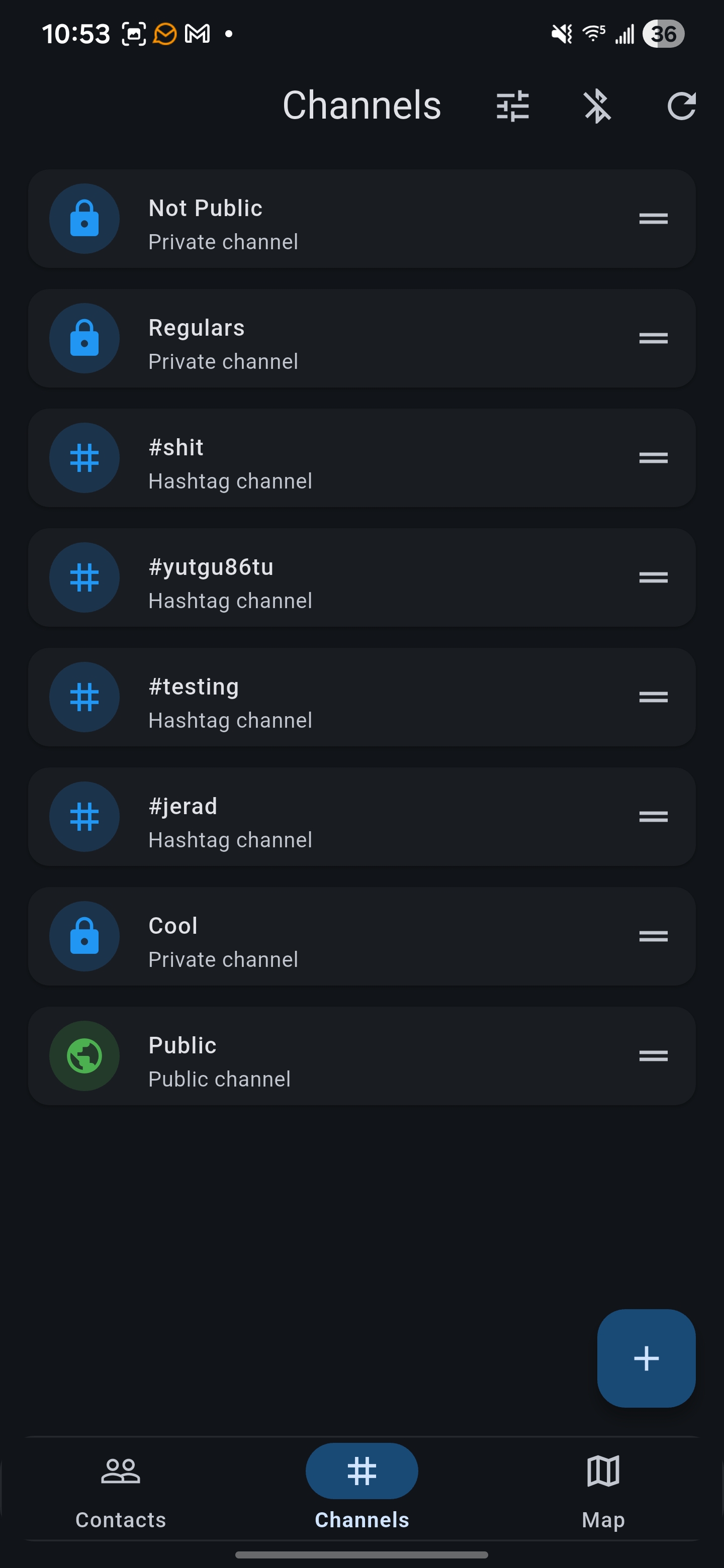

Channels
## Features ### Core Functionality - **Direct Messaging**: Private encrypted conversations with individual contacts - **Public Channels**: Broadcast messages to channel subscribers on the mesh network - **Contact Management**: Organize contacts, track last seen times, and manage conversation history - **Contact Groups**: Create custom groups to organize your mesh network contacts - **Message Reactions**: React to messages with emoji responses - **Message Replies**: Thread conversations with inline reply functionality ### Mesh Network - **Path Visualization**: View routing paths and signal quality for each contact - **Route Management**: Manual path overriding and automatic route rotation - **Signal Metrics**: Real-time SNR (Signal-to-Noise Ratio) tracking - **Node Discovery**: Automatic detection of nearby mesh nodes - **Repeater Support**: Connect to and manage repeater nodes for extended range ### Map & Location - **Live Map View**: Real-time visualization of mesh network nodes on an interactive map - **Node Filtering**: Filter by node type (chat, repeater, sensor) and time range - **Location Sharing**: Share GPS coordinates and custom markers with contacts - **Offline Maps**: Download map tiles for offline use in remote areas - **MGRS Coordinates**: Support for Military Grid Reference System coordinate format ### Device Management - **BLE, USB, TCP Connection**: Scan and connect to MeshCore devices via Bluetooth, USB or TCP - **Device Settings**: Configure radio parameters, power settings, and network options - **Battery Monitoring**: Real-time battery status with chemistry-specific voltage curves - **Firmware Updates**: Over-the-air firmware updates via BLE (coming soon) ### Repeater Hub - **CLI Access**: Full command-line interface to repeater nodes - **Settings Management**: Configure repeater behavior, power limits, and network settings - **Statistics Dashboard**: View repeater traffic, connected clients, and system health - **Remote Management**: Administer repeaters from anywhere on the mesh network ## Technical Details ### Architecture - **Framework**: Flutter 3.38.5 / Dart 3.10.4 - **State Management**: Provider pattern with ChangeNotifier - **BLE Protocol**: Nordic UART Service (NUS) over Bluetooth Low Energy - **Storage**: Local SQLite database for messages and contact data - **Encryption**: End-to-end encryption for private messages using the MeshCore protocol ### Platform Support | Feature | Android (API 21+) | iOS (12+) | Linux | Windows | macOS | Web | |--------------------|:-----------------:|:---------:|:-----:|:-------:|:-----:|:---------------------------------:| | BLE companion | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | | USB companion | ✅ | 🚧 | ✅ | ✅ | ✅ | ✅ | | TCP companion | ✅ | 🚧 | ✅ | ✅ | ✅ | ❌
(requires websocket bridge) | | Core Functionality | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | | Mesh Network | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | | Map & Location | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | | Device Management | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | | Repeater Hub | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ### Dependencies | Package | Purpose | |---------|---------| | flutter_blue_plus | Bluetooth Low Energy communication | | provider | State management | | sqflite | Local database storage | | flutter_map | Interactive map display | | latlong2 | Geographic coordinate handling | | flutter_local_notifications | Background notification support | | smaz | Message compression | | pointycastle | Cryptographic operations | | intl | Internationalization and date formatting | ## Getting Started ### Prerequisites - Flutter SDK 3.38.5 or later - Android Studio / Xcode (for mobile development) - A MeshCore-compatible LoRa device ### Installation 1. **Clone the repository** ```bash git clone https://github.com/zjs81/meshcore-open.git cd meshcore-open ``` 2. **Install dependencies** ```bash flutter pub get ``` 3. **Run the app** ```bash flutter run ``` ### Building for Release **Android APK:** ```bash flutter build apk --release ``` **iOS:** ```bash flutter build ios --release ``` ## Project Structure ``` lib/ ├── main.dart # App entry point ├── connector/ │ ├── meshcore_connector.dart # BLE communication & state management │ ├── meshcore_protocol.dart # Protocol definitions & frame parsing │ └── meshcore_uuids.dart # Device names and IDs (add prefixes here!) ├── screens/ │ ├── scanner_screen.dart # Device scanning (home screen) │ ├── contacts_screen.dart # Contact list │ ├── chat_screen.dart # Direct messaging │ ├── channels_screen.dart # Public channels │ ├── map_screen.dart # Network visualization map │ ├── settings_screen.dart # Device settings │ └── repeater_hub_screen.dart # Repeater management ├── models/ │ ├── contact.dart # Contact data model │ ├── message.dart # Message data structure │ └── channel.dart # Channel definitions ├── services/ │ ├── notification_service.dart # Push notifications │ ├── message_retry_service.dart # Automatic message retry │ ├── background_service.dart # Background BLE connection │ └── map_tile_cache_service.dart # Offline map storage └── storage/ ├── message_store.dart # Message persistence ├── contact_store.dart # Contact database └── unread_store.dart # Unread message tracking ``` ## BLE Protocol ### Nordic UART Service (NUS) - **Service UUID**: `6e400001-b5a3-f393-e0a9-e50e24dcca9e` - **RX Characteristic**: `6e400002-b5a3-f393-e0a9-e50e24dcca9e` (Write to device) - **TX Characteristic**: `6e400003-b5a3-f393-e0a9-e50e24dcca9e` (Notify from device) ### Device Discovery Devices are discovered by scanning for BLE advertisements with known MeshCore device name prefixes. These are currently: - `MeshCore-` - `Whisper-` - `WisCore-` - `HT-` - `LowMesh_MC_` New device prefixes can be added in `lib/connector/meshcore_uuids.dart`. ### Message Format Messages are transmitted as binary frames using a custom protocol optimized for LoRa transmission. See `meshcore_protocol.dart` for frame structure definitions. ## Configuration ### App Settings - **Theme**: System default, light, or dark mode - **Language**: Use one of 15 languages (English, Chinese, French, Spanish, Portuguese, German, Dutch, Polish, Swedish, Italian, Slovak, Slovene, Bulgarian, Russian, Ukrainian) - **Notifications**: Configurable for messages, channels, and node advertisements - **Battery Chemistry**: Support for NMC, LiFePO4, and LiPo battery types - **Message Retry**: Automatic retry with configurable path clearing ### Device Settings - **Radio Power**: Transmit power adjustment (10-30 dBm) - **Frequency**: LoRa frequency configuration - **Bandwidth**: Channel bandwidth selection - **Spreading Factor**: Range vs. speed trade-off - **Network ID**: Mesh network identifier ## Contributing This is an open-source project. Contributions are welcome! ### Development Guidelines - Follow the Flutter style guide - Use Material 3 design components - Write clear commit messages - Test on both Android and iOS before submitting PRs ### Code Style - Prefer `StatelessWidget` with `Consumer` for reactive UI - Use `const` constructors where possible - Keep functions small and focused - Avoid premature abstractions - Run dart format on all changes before submitting ## Support For issues, questions, or feature requests, please open an issue on GitHub: ## Donate If you find MeshCore Open useful and would like to support development, you can donate Solana or other Solana tokens: **Solana Address:** `F15YanjZj96YTBtKJYgNa8RLQLCZkx5CEwogPWkqXeoQ` **Monero Address:** `453TxnpUqjkJtXxzdjMsrgERNkBRXEGamPbpC45ENrvKAk9tH7kZbxWF82Hz66etgDZyXFPEBU2JUEqhLeJyWt9kBvTVy5m` **Bitcoin Address:** `bc1qh45x28v8dslcg4v4upmqd9g0mvc3lnyffmyzr5` Your support helps maintain and improve this open-source project! ## Acknowledgments - Built with [Flutter](https://flutter.dev/) - Map tiles from [OpenStreetMap](https://www.openstreetmap.org/)
