# MeshCore Open
Open-source Flutter client for MeshCore LoRa mesh networking devices.
## Overview
MeshCore Open is a cross-platform mobile application for communicating with MeshCore LoRa mesh network devices via Bluetooth Low Energy (BLE). The app enables long-range, off-grid communication through peer-to-peer messaging, public channels, and mesh networking capabilities.
## Screenshots

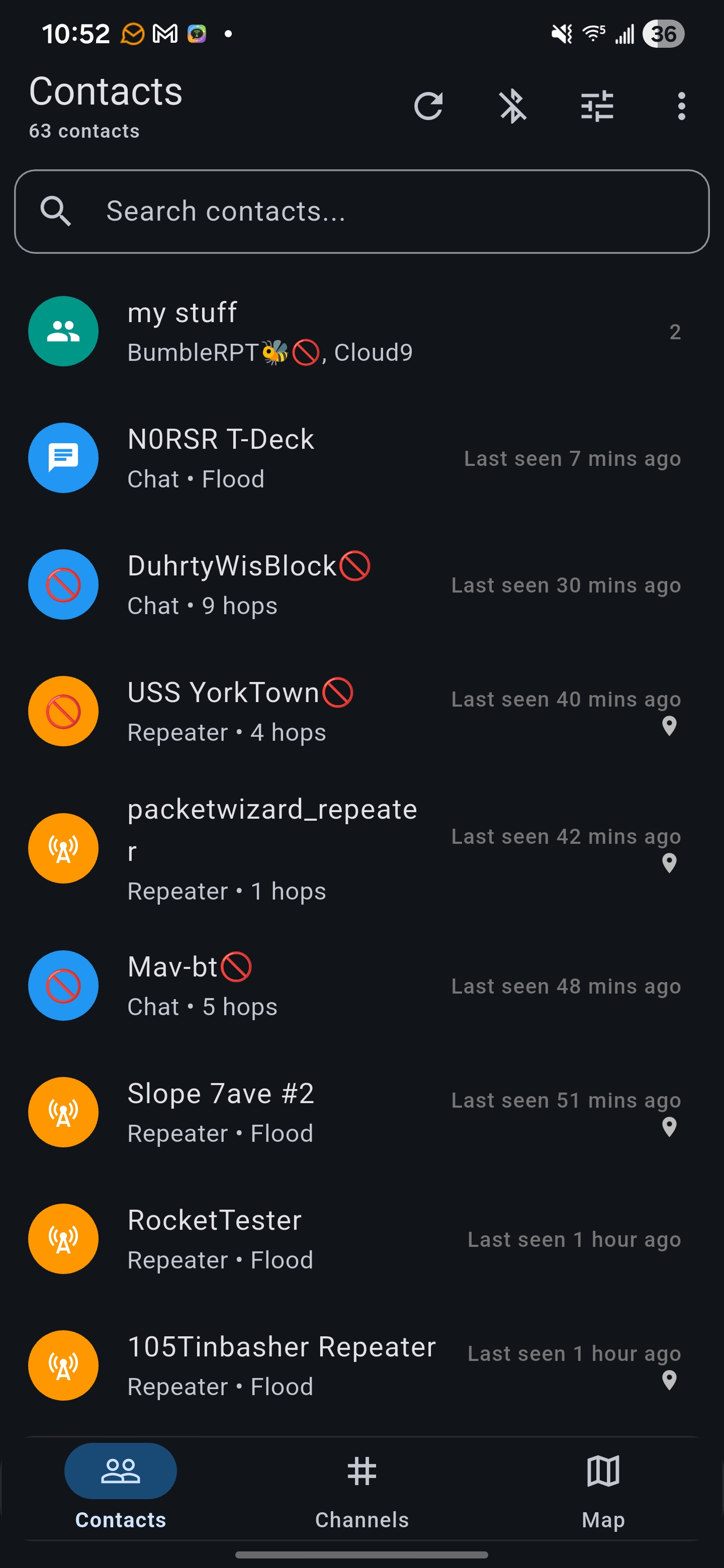

Contacts |

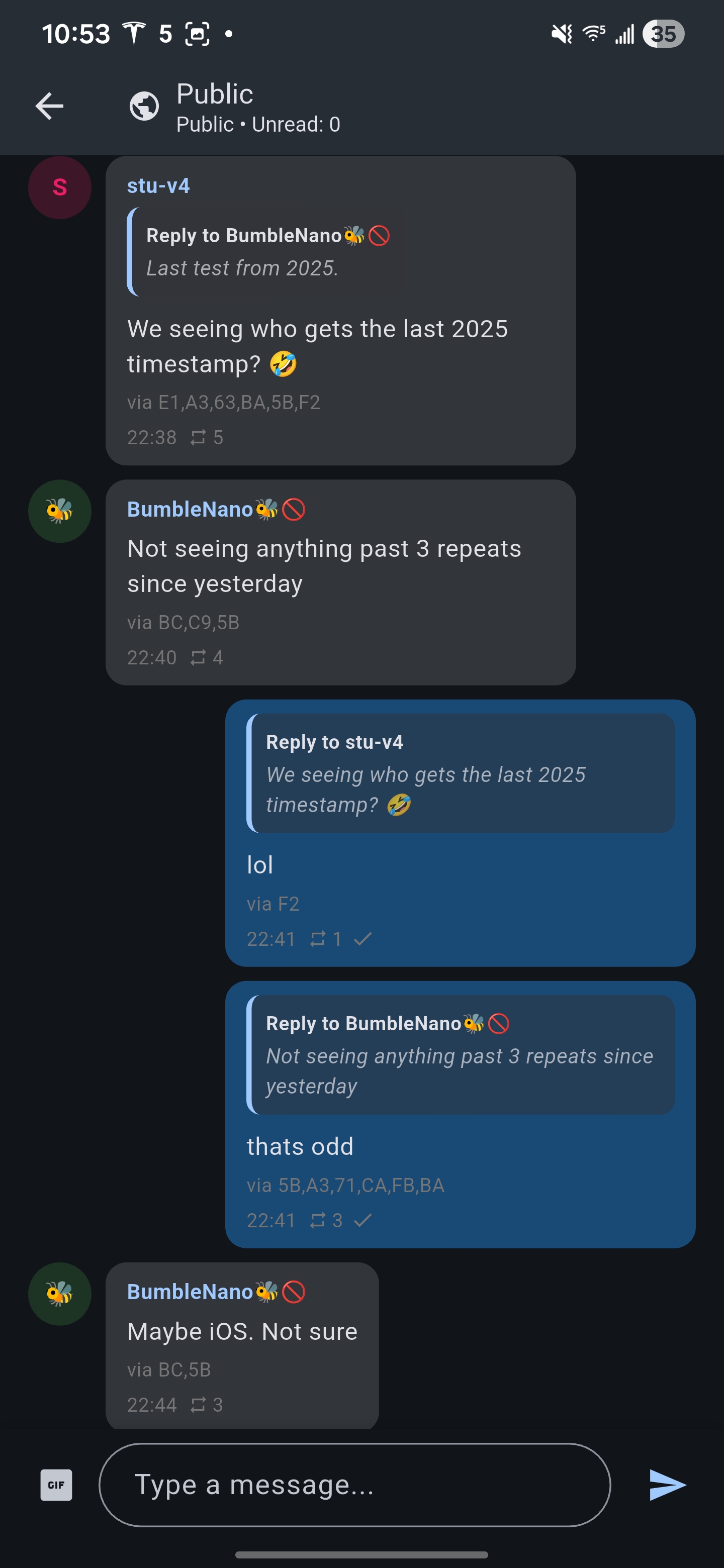

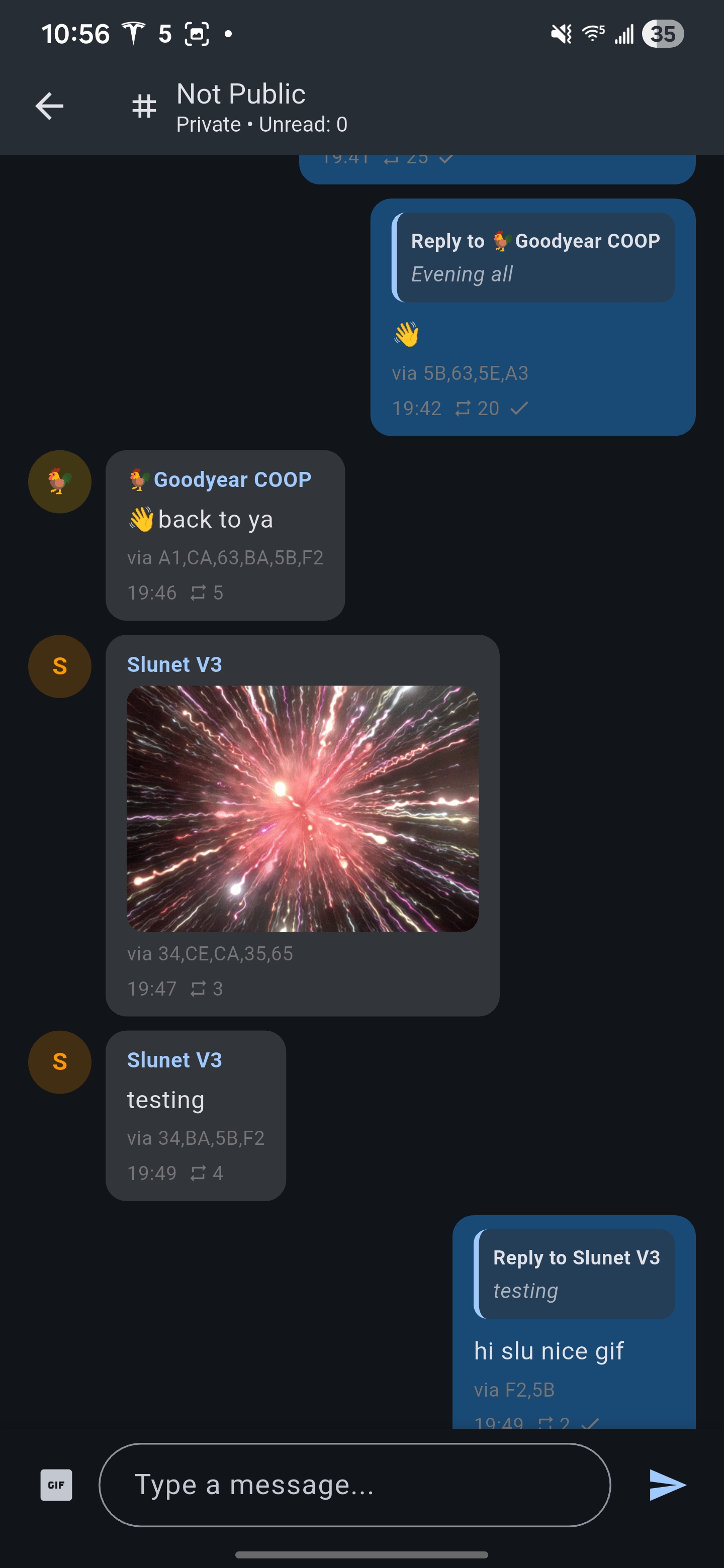

Chat |
Reactions |

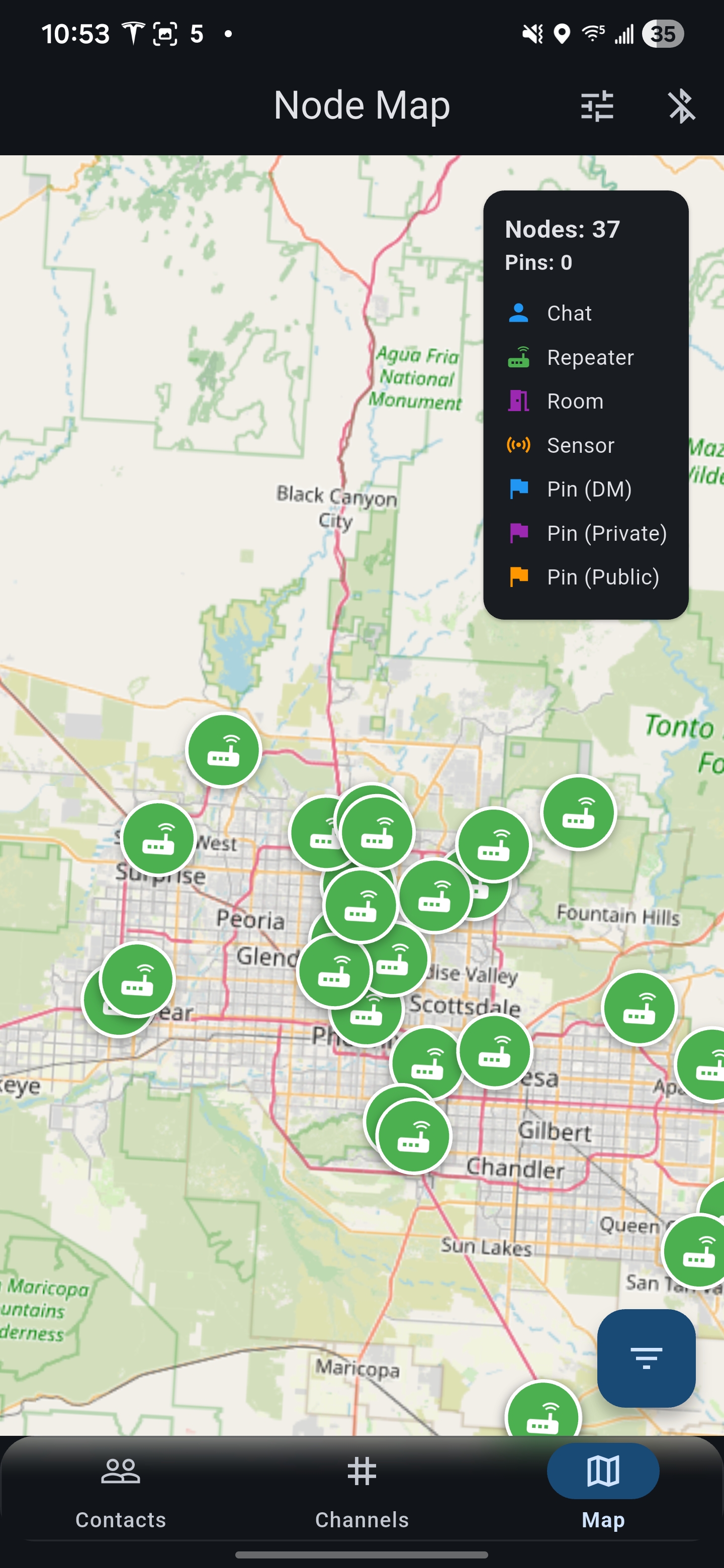

Map |

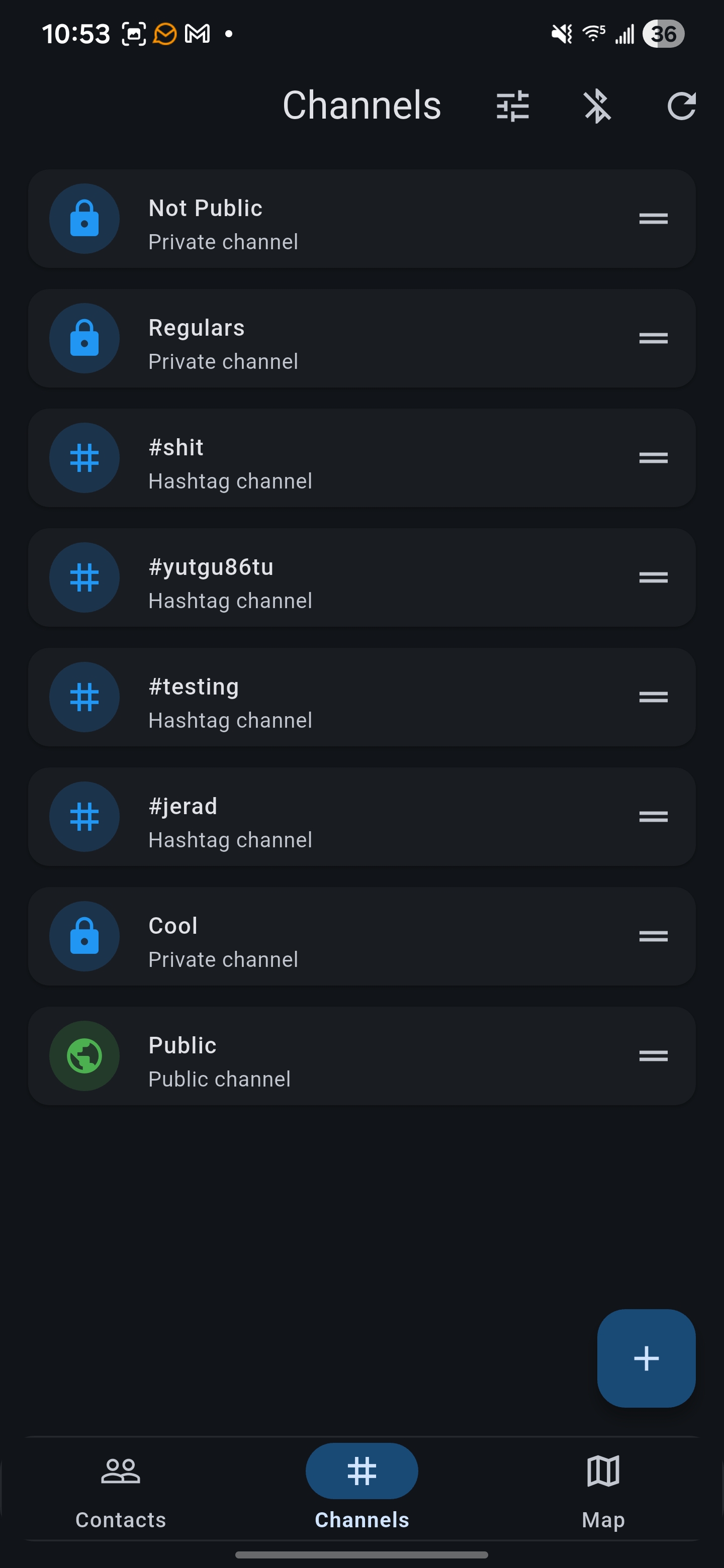

Channels |
## Features
### Core Functionality
- **Direct Messaging**: Private encrypted conversations with individual contacts
- **Public Channels**: Broadcast messages to channel subscribers on the mesh network
- **Contact Management**: Organize contacts, track last seen times, and manage conversation history
- **Contact Groups**: Create custom groups to organize your mesh network contacts
- **Message Reactions**: React to messages with emoji responses
- **Message Replies**: Thread conversations with inline reply functionality
### Mesh Network
- **Path Visualization**: View routing paths and signal quality for each contact
- **Route Management**: Manual path overriding and automatic route rotation
- **Signal Metrics**: Real-time SNR (Signal-to-Noise Ratio) tracking
- **Node Discovery**: Automatic detection of nearby mesh nodes
- **Repeater Support**: Connect to and manage repeater nodes for extended range
### Map & Location
- **Live Map View**: Real-time visualization of mesh network nodes on an interactive map
- **Node Filtering**: Filter by node type (chat, repeater, sensor) and time range
- **Location Sharing**: Share GPS coordinates and custom markers with contacts
- **Offline Maps**: Download map tiles for offline use in remote areas
- **MGRS Coordinates**: Support for Military Grid Reference System coordinate format
### Device Management
- **BLE, USB, TCP Connection**: Scan and connect to MeshCore devices via Bluetooth, USB or TCP
- **Device Settings**: Configure radio parameters, power settings, and network options
- **Battery Monitoring**: Real-time battery status with chemistry-specific voltage curves
- **Firmware Updates**: Over-the-air firmware updates via BLE (coming soon)
### Repeater Hub
- **CLI Access**: Full command-line interface to repeater nodes
- **Settings Management**: Configure repeater behavior, power limits, and network settings
- **Statistics Dashboard**: View repeater traffic, connected clients, and system health
- **Remote Management**: Administer repeaters from anywhere on the mesh network
## Technical Details
### Architecture
- **Framework**: Flutter 3.38.5 / Dart 3.10.4
- **State Management**: Provider pattern with ChangeNotifier
- **BLE Protocol**: Nordic UART Service (NUS) over Bluetooth Low Energy
- **Storage**: Local SQLite database for messages and contact data
- **Encryption**: End-to-end encryption for private messages using the MeshCore protocol
### Platform Support
| Feature | Android (API 21+) | iOS (12+) | Linux | Windows | macOS | Web |
|--------------------|:-----------------:|:---------:|:-----:|:-------:|:-----:|:---------------------------------:|
| BLE companion | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| USB companion | ✅ | 🚧 | ✅ | ✅ | ✅ | ✅ |
| TCP companion | ✅ | 🚧 | ✅ | ✅ | ✅ | ❌
(requires websocket bridge) |
| Core Functionality | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| Mesh Network | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| Map & Location | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| Device Management | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| Repeater Hub | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
### Dependencies
| Package | Purpose |
|---------|---------|
| flutter_blue_plus | Bluetooth Low Energy communication |
| provider | State management |
| sqflite | Local database storage |
| flutter_map | Interactive map display |
| latlong2 | Geographic coordinate handling |
| flutter_local_notifications | Background notification support |
| smaz | Message compression |
| pointycastle | Cryptographic operations |
| intl | Internationalization and date formatting |
## Getting Started
### Prerequisites
- Flutter SDK 3.38.5 or later
- Android Studio / Xcode (for mobile development)
- A MeshCore-compatible LoRa device
### Installation
1. **Clone the repository**
```bash
git clone https://github.com/zjs81/meshcore-open.git
cd meshcore-open
```
2. **Install dependencies**
```bash
flutter pub get
```
3. **Run the app**
```bash
flutter run
```
### Building for Release
**Android APK:**
```bash
flutter build apk --release
```
**iOS:**
```bash
flutter build ios --release
```
## Project Structure
```
lib/
├── main.dart # App entry point
├── connector/
│ ├── meshcore_connector.dart # BLE communication & state management
│ └── meshcore_protocol.dart # Protocol definitions & frame parsing
├── screens/
│ ├── scanner_screen.dart # Device scanning (home screen)
│ ├── contacts_screen.dart # Contact list
│ ├── chat_screen.dart # Direct messaging
│ ├── channels_screen.dart # Public channels
│ ├── map_screen.dart # Network visualization map
│ ├── settings_screen.dart # Device settings
│ └── repeater_hub_screen.dart # Repeater management
├── models/
│ ├── contact.dart # Contact data model
│ ├── message.dart # Message data structure
│ └── channel.dart # Channel definitions
├── services/
│ ├── notification_service.dart # Push notifications
│ ├── message_retry_service.dart # Automatic message retry
│ ├── background_service.dart # Background BLE connection
│ └── map_tile_cache_service.dart # Offline map storage
└── storage/
├── message_store.dart # Message persistence
├── contact_store.dart # Contact database
└── unread_store.dart # Unread message tracking
```
## BLE Protocol
### Nordic UART Service (NUS)
- **Service UUID**: `6e400001-b5a3-f393-e0a9-e50e24dcca9e`
- **RX Characteristic**: `6e400002-b5a3-f393-e0a9-e50e24dcca9e` (Write to device)
- **TX Characteristic**: `6e400003-b5a3-f393-e0a9-e50e24dcca9e` (Notify from device)
### Device Discovery
Devices are discovered by scanning for BLE advertisements with the name prefix `MeshCore-`
### Message Format
Messages are transmitted as binary frames using a custom protocol optimized for LoRa transmission. See `meshcore_protocol.dart` for frame structure definitions.
## Configuration
### App Settings
- **Theme**: System default, light, or dark mode
- **Language**: Use one of 15 languages (English, Chinese, French, Spanish, Portuguese, German, Dutch, Polish, Swedish, Italian, Slovak, Slovene, Bulgarian, Russian, Ukrainian)
- **Notifications**: Configurable for messages, channels, and node advertisements
- **Battery Chemistry**: Support for NMC, LiFePO4, and LiPo battery types
- **Message Retry**: Automatic retry with configurable path clearing
### Device Settings
- **Radio Power**: Transmit power adjustment (10-30 dBm)
- **Frequency**: LoRa frequency configuration
- **Bandwidth**: Channel bandwidth selection
- **Spreading Factor**: Range vs. speed trade-off
- **Network ID**: Mesh network identifier
## Contributing
This is an open-source project. Contributions are welcome!
### Development Guidelines
- Follow the Flutter style guide
- Use Material 3 design components
- Write clear commit messages
- Test on both Android and iOS before submitting PRs
### Code Style
- Prefer `StatelessWidget` with `Consumer` for reactive UI
- Use `const` constructors where possible
- Keep functions small and focused
- Avoid premature abstractions
- Run dart format on all changes before submitting
## Support
For issues, questions, or feature requests, please open an issue on GitHub:
## Donate
If you find MeshCore Open useful and would like to support development, you can donate Solana or other Solana tokens:
**Solana Address:** `F15YanjZj96YTBtKJYgNa8RLQLCZkx5CEwogPWkqXeoQ`
**Monero Address:** `453TxnpUqjkJtXxzdjMsrgERNkBRXEGamPbpC45ENrvKAk9tH7kZbxWF82Hz66etgDZyXFPEBU2JUEqhLeJyWt9kBvTVy5m`
**Bitcoin Address:** `bc1qh45x28v8dslcg4v4upmqd9g0mvc3lnyffmyzr5`
Your support helps maintain and improve this open-source project!
## Acknowledgments
- Built with [Flutter](https://flutter.dev/)
- Map tiles from [OpenStreetMap](https://www.openstreetmap.org/)
