Corrected the image ... the other board had the wrong pin order on the display

Konrad Roeder 2022-08-13 19:19:43 +00:00
parent 7de284bddd
commit b75ca183a0
1 changed files with 1 additions and 1 deletions
Show stats Download patch file Download diff file Expand all files Collapse all files

2
Hardware.md

@ -1,5 +1,5 @@

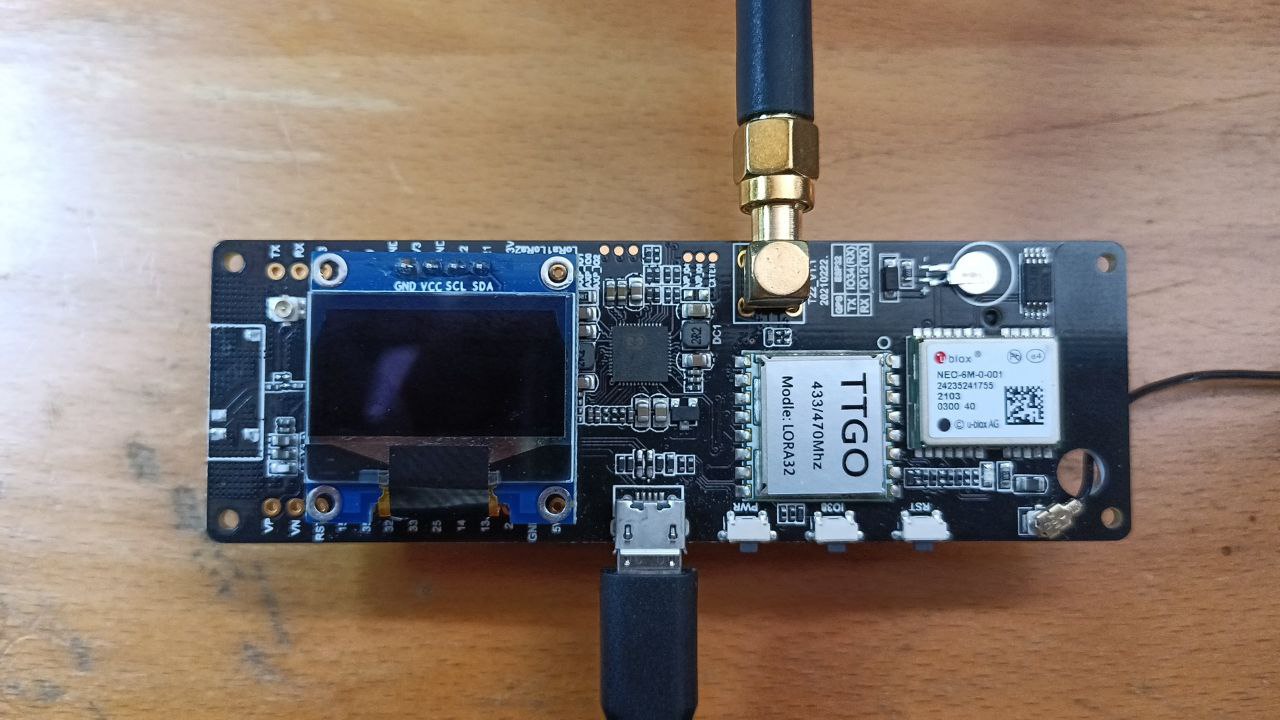

This is the most recent TTGO T-Beam **433MHz** ESP LoRa V1.1 board
![photo_2022-06-21_14-33-54](https://user-images.githubusercontent.com/3480859/184507616-a91585a2-37a4-4890-a0eb-f4a407a4fd1e.jpg)
![image](https://user-images.githubusercontent.com/3480859/184507785-934477eb-2121-4b63-9b9d-36a7430b8364.png)
Currently there are three boards that will work with the LoRa_APRS_Tracker firmware.
* TTGO T-Beam 433MHz ESP32 LoRa V0.7
